Fixing a Servo canvas memory leak

This is the first post in my Servo generational run series. I want to use this series to write down small debugging stories from Servo work, mostly the kind of issues where the final patch is small, but understanding the problem takes some digging.

This one is about Servo issue #45369, a 2D canvas memory leak report fixed in Servo PR #45455.

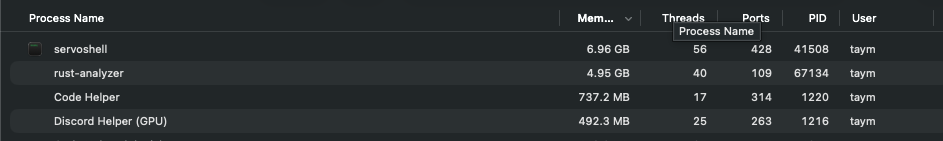

The report used the candle-repeat-var.html testcase from issue #45199. In Firefox and Chromium, memory eventually stabilized around 900 MB. In Servo nightly, the same testcase kept growing and reached around 5 GB after eight minutes.

At first, this looked like a canvas resource not being released. But the real issue was slightly different: the release path existed, it just was not being reached soon enough.

The important ownership chain looked like this:

JS object / SpiderMonkey reflector
-> CanvasRenderingContext2D Rust object
-> CanvasState field
-> canvas paint-thread resource
-> WebRender ImageKey

CanvasState is a Rust field inside CanvasRenderingContext2D. So CanvasState::drop only runs when the whole CanvasRenderingContext2D object is destroyed.

And that depends on SpiderMonkey finalizing the JS DOM object that owns it.

Before the fix

Before the fix, SpiderMonkey mostly saw this:

CanvasRenderingContext2D JS object: small object

But keeping that small JS object alive also kept native canvas resources alive:

small JS object
+ 10-20 MB native canvas memory

SpiderMonkey did not know about that native memory. From the GC’s point of view, these objects were cheap, so there was not enough pressure to collect them quickly.

The result was:

old canvas becomes unreachable
-> GC does not run soon enough
-> CanvasRenderingContext2D is not finalized
-> CanvasState::drop is not called
-> CanvasMsg::Close is not sent
-> CanvasData and ImageKey stay alive
-> memory keeps growing

So the problem was not that Drop was missing. The problem was that Servo relied on GC finalization to reach the Rust Drop path, and the GC did not know these objects were expensive.

The fix

The fix was to report the native memory held by the canvas context:

self.reflector_.update_memory_size(self, calculated_size);

That tells SpiderMonkey something closer to the real cost of the object:

This JS object is small,
but keeping it alive also keeps about 22 MB of native memory alive.

Now, when many old canvas contexts accumulate, SpiderMonkey sees the extra memory pressure and runs GC sooner.

Once GC collects the unreachable CanvasRenderingContext2D, Servo’s normal cleanup path can run:

GC sees old CanvasRenderingContext2D is unreachable
-> GC finalizes its JS reflector
-> Servo destroys the Rust CanvasRenderingContext2D
-> Rust drops its fields
-> CanvasState::drop runs
-> CanvasMsg::Close is sent
-> CanvasPaintThread removes CanvasData
-> CanvasData::drop deletes ImageKey
-> native memory is released

The important detail is that update_memory_size does not free anything by itself. It only tells SpiderMonkey how much native memory is tied to the JS object.

The actual cleanup still happens through Servo’s normal Rust Drop path.

So the fix was not:

manually free canvas memory

It was:

make the GC aware of the native memory,
so it collects the owner object soon enough

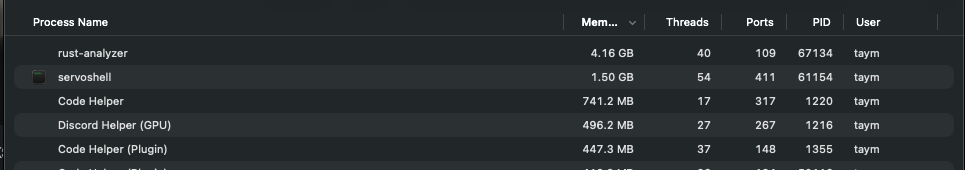

Before the fix, the GC treated the canvas context like a small JS object. After the fix, it also accounted for the native canvas resources behind it. That was enough to make collection happen earlier and stop the memory growth.
